New Compressor for machine shed

Larger compressor for the machine shop

New air line #1

New Air line #2

HF Tool Box

12 Ga. X 48" box & pan brake

Metal cutting bandsaw

Vortex Cooler

MIG Welder

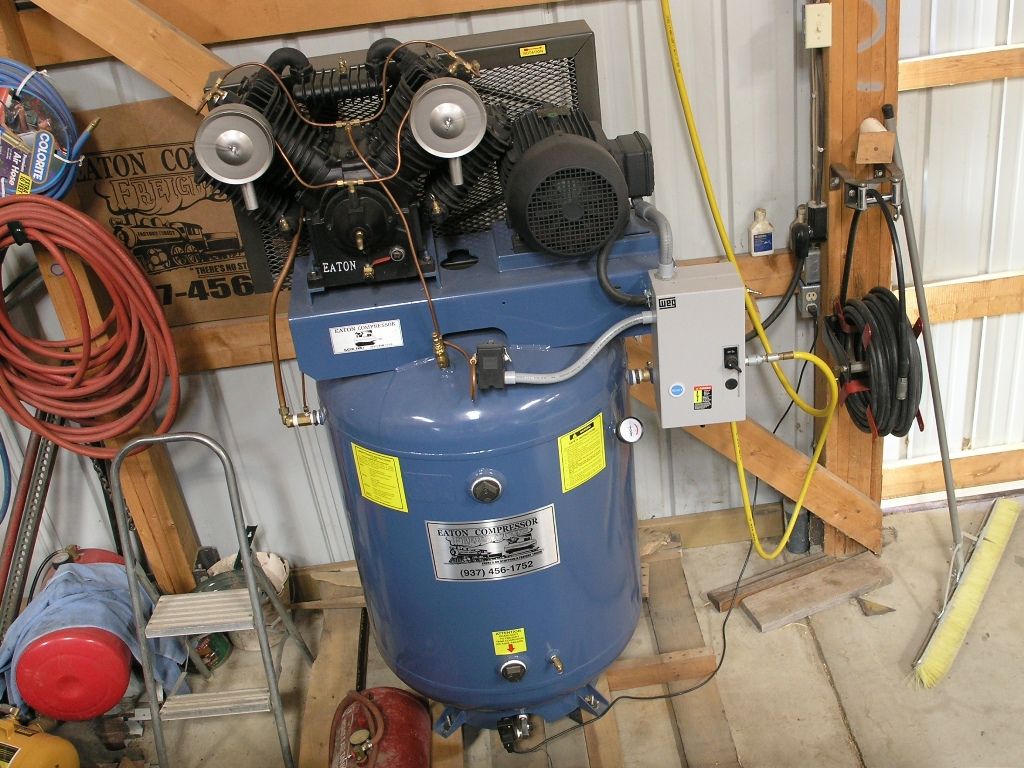

I replaced the two-stage, 80 gallon compressor with this larger 120 Gallon 7.5 HP compressor

The old 5 HP compressor was moved from the shed to my shop.

1" hydraulic hose supplies compressed air to my machine shop.

1" hydraulic hose also supplies air to a tap closer to the mill & lathe.

Tool storage for the machine shop

A new brake with a bit more capability than the one it replaced.

Here, the vortex cooler is shown mounted on the mill. Vortex coolers take lots of air and hence the reason for the upgraded compressor and new air drops for the machine shop.

Miller 35 in the machine shop.
