Tent light

Light insides

Making a larger hole

Centers cut out

Banks hooked in parallel

Making a series circuit

Light off

Light on

Light off

Light on

Light off

Light on

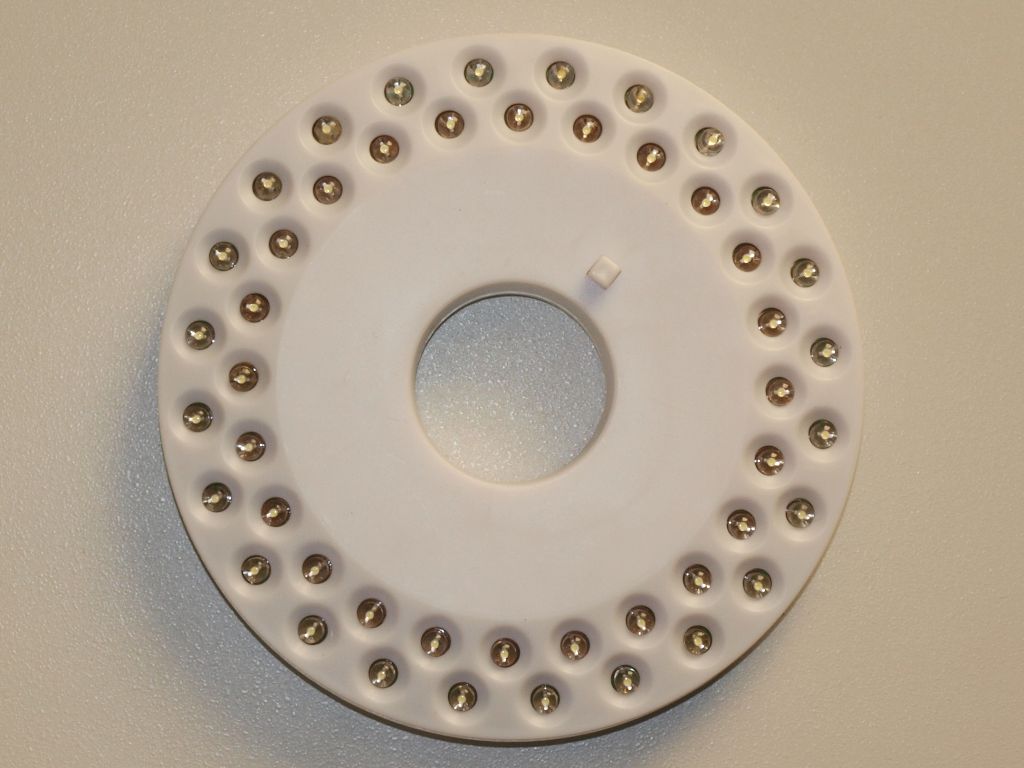

Ring light mounted

The newly purchased light, awaiting modifications.

I left the light assembled, gingerly chucked it in the lathe, and cut a groove that allowed me to push out the center by hand. The light was then chucked with the LED side out and the center of that disk was cut out.

After the center was removed, I trimmed the edges with a de-burring tool. A small notch was cut in the side of the housing and the on/off switch was mounted to the circuit board with a drop of super-glue.

As supplied, the light wanted 3.5 Volts that was supplied by AA cells. I had a wall-wart transformer that was rated at 600 MA & 6 Volts. Rewiring the light made the transformer a perfect fit.

The inner and outer ring each consisted of 24 LEDs and the banks were connected in parallel. I snipped the wires as shown and by hooking the banks in series, they each saw 3.5 Volts from the 7 volts that the transformer supplied at the current drawn by the light. Perfect Match!!

This shot was taken at 1/15 second using only natural room light

Same camera settings, only with the ring light on. Nice even light.

Again, natural light and 1/15 second shutter speed.

Same camera settings, but ring light on

1/15 second shutter with room lighting only

Camera as before, only with the new light turned on.

Bottom view of the spindle light. This shot was lit with another tent light that I purchased to make a camera ring light. Here, I put batteries in it and laid it atop the vise to illuminate this shot
