Axle Stabilizer Pad
Axle stabilizer
Starting pieces
The cut pieces.
Bottom view.
Top View
Side View
Installed View
Installed 3rd helical

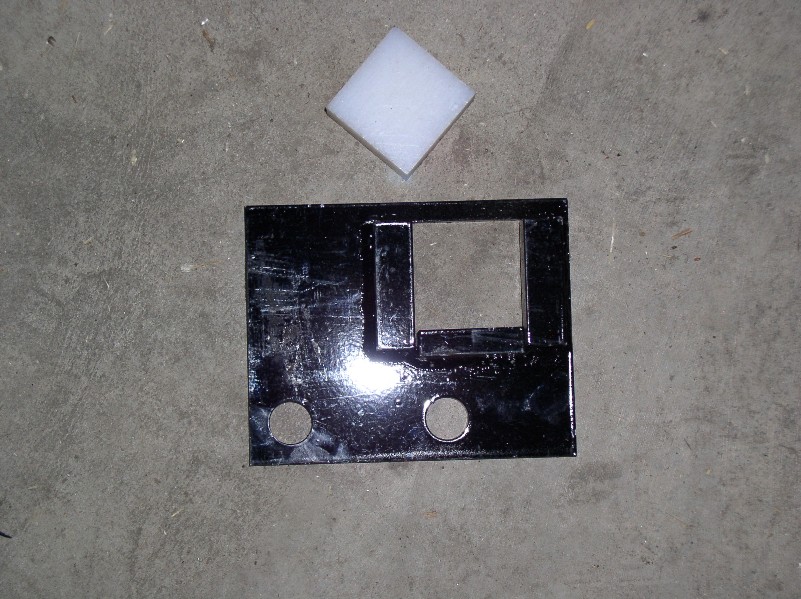

The plate that bolts to the axle and the nylon pad that serves as a bumper.
Kit # 71373037
The stabilizer bolted to the axle and nearly touching the axle stop plate.
The pieces as the mod starts. 1/4" thick 6" steel plate, The helical trimmed to length, and the crop divider as removed from the processor. Notice the Marks-A-Lot marks drawn flush with the small step on the cage before the divider was removed.
The cut helical, The crop divider cut along the marks, and a triangle cut from the 1/4" plate.
Crop divider piece welded to the triangle that was bent to follow the curve of the crop divider. Also notice the small piece of sheet that is welded as a backer for the top bolt on the helical.
Top view of the assembly ready to be installed.
The assembly ready for installation, as viewed from the right side.
3rd helical extension installed in the cage. The hex head bolts will be replaced with carriage head bolts before the rotor is installed.
The completed mod.
.
|
Axle Stabilizer Pad
The plate that bolts to the axle and the nylon pad that serves as a bumper.
Kit # 71373037
