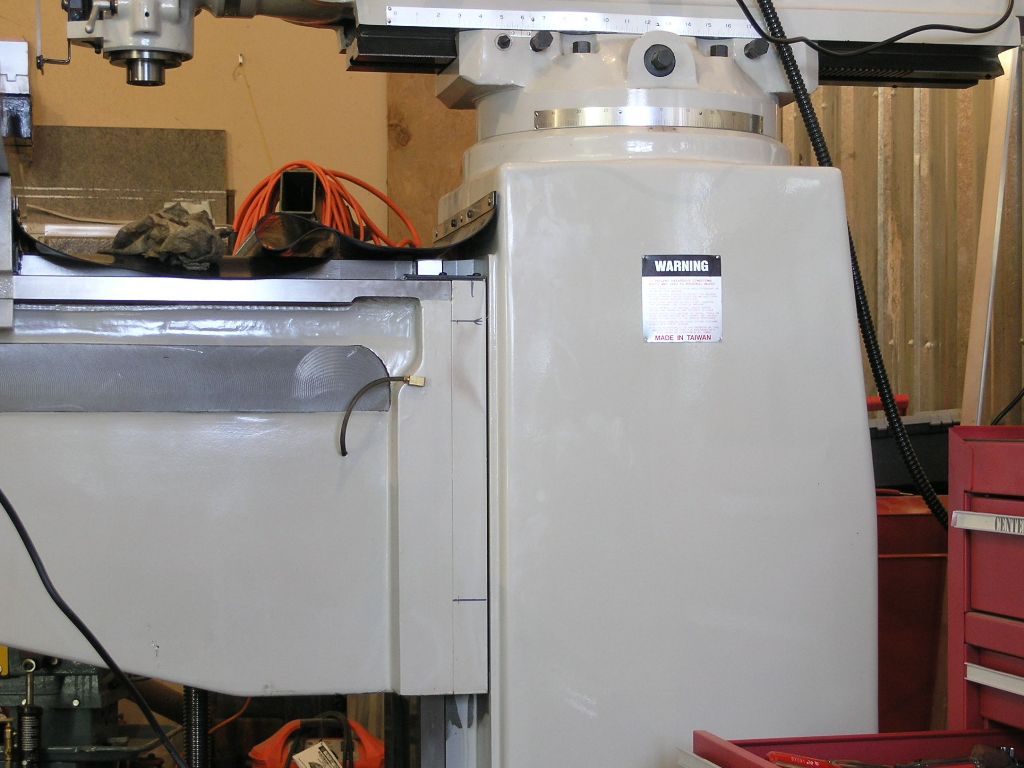

Z-Axis location.

Hand tapping guide.

Drilled & tapped.

Check for parallel

Lengthening slots

Plate for reader head

Reader mounted

Protective cover

Display

Scale mounting holes marked and ready to be drilled.

Brand new tool for starting taps straight & easy.

It is recommended to have the scale mounted so it runs completely true as it moves through it's range.

Plate had to shimmed out with the spacer and two shims added under the top mounting bolt to compensate for the slightly tapered column.

Reader mounted and cable clipped to slots in the plate.

The protective cover in place

It works!
